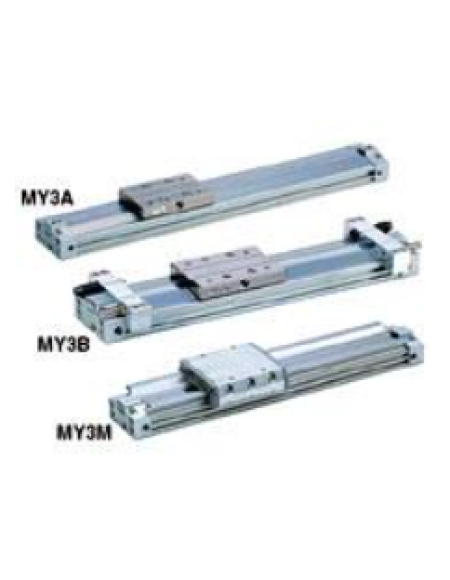

Mechanically Jointed Rodless Cylinder MY3

Type

Series/CAD

Action

Bore size (mm)

Basic, Short
(Rubber bumper)

MY3A

Double acting

16,25,40,63

Basic, Standard
(Air cushion)

MY3B

Slide bearing guide
(Air cushion)

MY3M

Features

• This space-saving cylinder reduces the height by maximum of 36% and length by maximum of 140 mm compared to the mechanically jointed rodless cylinder, series MY1B.
