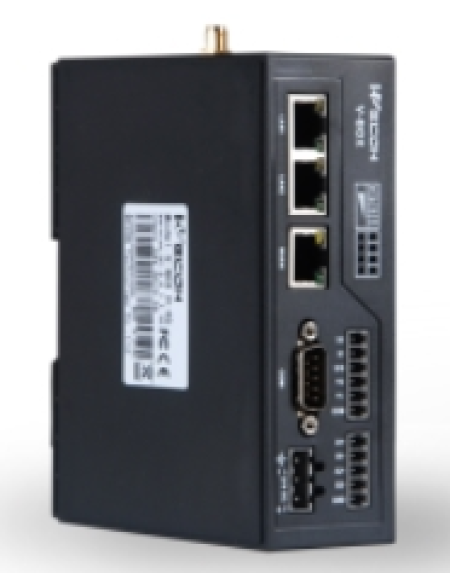

V-BOX H-AG

Main Features:

V-BOX is a device for use in remote debugging, web scada, API interface, app monitoring.

* 2 inputs with optocoupler isolation;2 relay outputs

* 3 Ethernet ports with WAN/LAN

* 2*RS485 ports + 1* nine pin serial port

* ABS plastic shell preventing input interface

* VPN passthrough for PLC remote debugging

* Open cloud mode with MQTT

* Virtual deployment to creat your own cloud

OS		Linux
CPU		Cortex A7 528MHz
Storage	Flash	128MB
	RAM	DDRIII 128MB
	SD Card	N/A
I/O Ports	USB Host	USB Host/Device：USB OTG Switch
	Serial Port	COM1: RS232 / RS485 / RS422
		COM2: RS422/RS485,RS485
		COM3: RS485
	Ethernet	3 Ethernet port
	WIFI Module	N/A
	3G/4G Module	4G
	Power	24VDC(12~28V DC)
Power consumption	Power	<10w
Dimension	Enclosure	PC+ABS
	Dimension(mm)	131.0W100.5H46.0D
	Mounting Size(mm)	Din rail
	Net/Gross(KG)	0.3
Operation Environment	Seismic Resistance	10 ~ 25 Hz (X、Y、Z direction 2G/30minutes)
	Storage Temperature	20℃~70℃
	Working Temperature	10℃~60℃
	Relative Humidity	10 ~ 85％RH(Non-condensing)
CE Certification		CE marked
FCC Certification		FCC Class A
