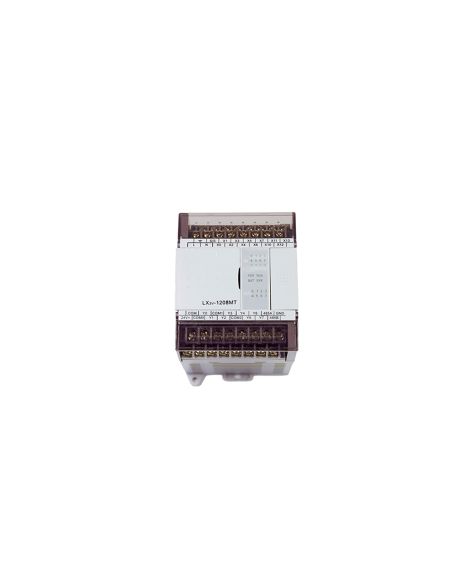

Wecon 20 I/O PLC : LX3V-1208MT
| LX3V Series | LX3VP Series | LX3VE/3VM Series | |
| Running Mode | Round Scan/InterruptRound Scan/ Interrupt | ||
| Programming | Instruction List/LadderInstruction List / Ladder | ||
| Total Instructions | Basic Instructions: 27/Applied Instruction: 136+2 Basic Instructions: 27 /Applied Instruction: 136+2 | 140 140 | |
| Execute Time | Basic Instructions: 0.06us /Applied Instruction: 1~10usBasic Instructions: 0.06us /Applied Instruction: 1~10us | ||
| System Storage | 16k16K | 64k64K | 32k32K |
| Download / Monitor | Serial Programming Cable/ Mini USBSerial Programming Cable/ Mini USB | ||
| High Speed Pulse Output | Transistor Type: 2 Channels(4 channels optional) / Relay N/A(2 channels optional)Transistor : 2 Channels(4 channels optional) / Relay N/A(2 channels optional) | ||
| External Interrupt | 6 Channels6 Channels | ||
| Timer Interrupt | 3 Channels | ||
| Holding Addresses | Adjustable | ||
| Storage | FLASH | ||
| Filter | For all X input terminals | ||
| Serial Port |
COM1:RS422 or RS485 COM2:RS485 |
||
| Temperature | Operating Temperature：0 ~ 55℃/Storage Temperature：0 ~ 70℃ | ||
| Humidity | 35~85%RH (Without condensation) | ||
| Shock Resistance | JIS C0040 Standard | ||
| Noise Immunity | Noise Voltage:1000Vp-p Pulse; Width:1us; Frequency:30-100Hz (Noise Simulator) | ||
| Item | Relay Output | Transistor Output | |
| Output Type | -- | NPN | |
| Input Power Supply | DC 24V | DC 24V | |
| Output Circuit | DC 5~30V | ||
| COM Port Current | -- | <0.1mA(DC 30V) | |
| Insulation | Mechanistic | Optical Coupling | |
| Leak Current | -- | 0.1mA/DC 30V | |
| Min.Load | -- | DC 5V 2mA | |
|
Max.Load |
Resistive |
2A point 8A COM port | 0.5A point 0.8A COM port 0.3A HSPO point |
| Inductive | 80VA | 12W/DC 24V7.2WHSPO point | |
| GeneralGeneral | 100W | 0.9W/DC 24V | |
|
Response Time |
ON | <10ms | <0.2ms (Pulse out put terminal：<5us) |
| OFF | |||
|
Item |
LX3V(P)0806M/1208M/1212M/1412M | LX3V(P)1616M/2416M/3624M |
| Voltage | AC100~240V 50~60Hz | |
| Power Outage Time | 10ms | |
| Rush Current | <15A 5ms/AC 100V; <30A 5ms/AC 200V | |
| Power Fuse | 250V 1A | 250V 3.15A |
| Power Consumption | <35w | <60w |
| Power Output | DC 24V 850mA | DC 24V 700mA |
| Item | LX3V/LX3VP |
| Power Supply | DC 24V±10% |
| Power Outage Time | 10ms |
| Power Fuse | 250V 3.15A |
| Rush Current | <15A 1ms/DC 24V |
| Power Consumption |
<30w |
