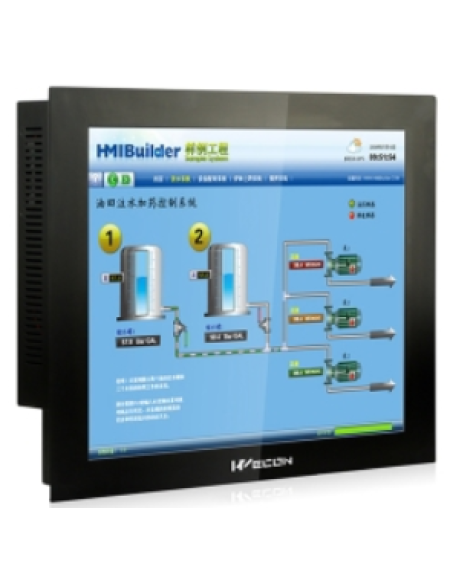

17 Inch Industrial PC: WPC-170403A

Danh mục sản phẩm

17 Inch Industrial PC: WPC-170403A

1. Intel baytrail J1900 4-Core CPU，178°full view LED screen,high resolution.
2. Shell is made in matte and smooth steel plate, more beautiful and stable.
3. USB3.0 supported, twoi ways 1000MB Ethernet work support, WIFI is optional.
4. Resistance touch screen with dust-proof and oil-proof, life-time is more than 30 million times.
5. Turn-on by power supported, support uninterrupte within 24 hours. All capacitors are solid-state.
6. Stainless steel power switch, aviation plug for power-supply port.
7. 2-channel Built-in speakers.
8. VGA and HDMI output.
9. SSD solid disk supported.

Giá:
Liên hệ
Lượt xem:
1026

Thông tin sản phẩm
Bình luận

Screen Size	10.4 Inch	12 Inch	15 Inch	17 Inch	19 Inch	21.5 Inch
Shell material	Steel
Shell color	Black
CPU	Intel Celeron J1900
Resolution	1024*768	1024*768	1024*768	1280*1024	1080*1024	1920*1080
Screen ratio	4 : 3	4 : 3	4 : 3	5:4	5:4	16 : 9
Touch screen	5-wire analog resistive
Memory	4G DDR3
SSD	32 GB SSD (64GB/128GB optional)
Display chip	Intel HD Graphics
Audio chip	Integrated Realtek ALC662
Network card chip	Integrated RTL 8111 Gigabit NIC
Power Adapter	100-240V input; 12V/5A output
Size (mm)	276.0214.0 46.0	316.0260.056.0	375.0290.053.0	415.0337.057.0	451.0380.059.2	552.9345.057.0
Cut size (mm)	252.5 *189.7	295.0*238.0	355.0*271.0	394.0*316.0	432.5*361.5	531.9*324.0
Gross Weight (KG)	5	6	7	8	10	12
Temperature	-10℃~50℃
System	Windows 7 (inofficial) (support Windows 7/8/10)
Power	<25w	<25w	<30w	<35w	<45w	<38w
USB Host	4	6	6	4	4	4
Serial Ports	RS232*2	RS232*6 (COM3 optional for RS485/422)	RS232*6 (COM3 optional for RS485/422)	RS232*6 (COM3 optional for RS485/422)	RS232*2	RS232*6 (COM3 optional for RS485/422)
Network	RJ45*1 (Ethernet)	RJ45*1 (Ethernet)	RJ45*1 (Ethernet)	RJ45*2 (Ethernet)	RJ45*1 (Ethernet)	RJ45*2 (Ethernet)
VGA	1
HDMI	1
Audio	1
Wifi	Optional
Installation methods	VESA, Wall-hanging,Desktop and Embedded installation
Industrial environment	Industrial dust,anti-stress,anti-interference,high and low temperature stability,support 24 hours of continuous operation
