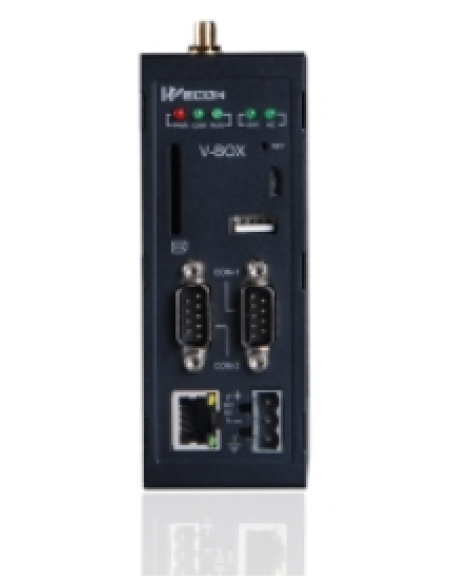

V-BOX S-AG

Danh mục sản phẩm

V-BOX S-AG

V-BOX Main Features:
1. To obtain data through Serial communication (RS232/RS485/Ethernet) from device controllers.
2. It supports Communication protocols of all major brands’ PLCs and controllers.
3. It connects to cloud platform through 4G（worldwide supported）/ Ethernet/ WIFI.
4. OPC access, HTTP developer interface.
5. PLC remote monitoring and remote program download.
6. Android/ios App access, desktop browsing.

Giá:
Liên hệ
Lượt xem:
1249

Thông tin sản phẩm
Bình luận

OS		Linux
CPU		Cortex A8 600MHz
Storage	Flash	128MB
	RAM	DDRIII 128MB
	SD Card	YES
I/O Ports	USB Host	USB 2.0 *1
	USB Client	OTG USB/DEVICE USB
	Serial Port	COM1: RS232 / RS485 / RS422
		COM2: RS422/RS485,RS485

	Ethernet	YES
	WIFI Module	YES
	3G/4G Module	4G(Worldwide supported)
Power	Power Supply	24VDC(12~28V DC)
Power	Power consumption	<10w
Dimension	Enclosure	Aluminum
	Dimension(mm)	128.0119.044.3mm
	Mounting Size(mm)	136.0*22.0mm
	Net/Gross(KG)	0.34
Operation Environment	Seismic Resistance	10 ~ 25 Hz (X、Y、Z direction 2G/30minutes)
	Storage Temperature	-30℃~70℃
	Working Temperature	-10℃~60℃
	Relative Humidity	10 ~ 90％RH(Non-condensing)
CE Certification		CE marked
FCC Certification		FCC Class A
