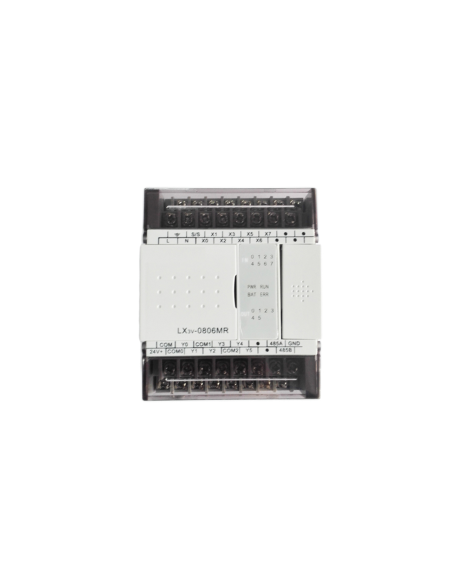

Wecon 14 I/O PLC : LX3V-0806MR

◇ Power supply: AC85-265V power,D:DC24V power, 20W rated power output ◇ IO:8xDI/6xDO( Relay-type ) ◇ Port:RS422, RS485,1 BD board supported. ◇ Protocol: LX3V-0806MR-A(D)1 ：1S NO PROTOCOL, LX3V-0806MR-A(D)2 ：2N NO PROTOCOL‍

Giá:
Liên hệ
Lượt xem:
217

Thông tin sản phẩm
Bình luận

PLC Introduction-1.jpg PLC Introduction 2.jpg

General

	LX3V Series	LX3VP Series	LX3VE/3VM Series
Running Mode	Round Scan/InterruptRound Scan/ Interrupt
Programming	Instruction List/LadderInstruction List / Ladder
Total Instructions	Basic Instructions: 27/Applied Instruction: 136+2Basic Instructions: 27 /Applied Instruction: 136+2		140 140
Execute Time	Basic Instructions: 0.06us /Applied Instruction: 1~10usBasic Instructions: 0.06us /Applied Instruction: 1~10us
System Storage	16k16K	64k64K	32k32K
Download / Monitor	Serial Programming Cable/ Mini USBSerial Programming Cable/ Mini USB
High SpeedPulse Output	Transistor Type: 2 Channels(4 channels optional) / Relay N/A(2 channels optional)Transistor : 2 Channels(4 channels optional) / Relay N/A(2 channels optional)
External Interrupt	6 Channels6 Channels
Timer Interrupt	3 Channels
HoldingAddresses	Adjustable
Storage	FLASH
Filter	For all X input terminals
SerialPort	COM1:RS422 or RS485 COM2:RS485
Temperature	Operating Temperature：0 ~ 55℃/Storage Temperature：0 ~ 70℃
Humidity	35~85%RH (Without condensation)
Shock Resistance	JIS C0040 Standard
Noise Immunity	Noise Voltage:1000Vp-p Pulse; Width:1us; Frequency:30-100Hz (Noise Simulator)

Output

Item		Relay Output	Transistor Output
Output Type		--	NPN
Input Power Supply		DC 24V	DC 24V
Output Circuit			DC 5~30V
COM Port Current		--	<0.1mA(DC 30V)
Insulation		Mechanistic	Optical Coupling
Leak Current		--	0.1mA/DC 30V
Min.Load		--	DC 5V 2mA
Max.Load	Resistive	2A point 8A COM port	0.5A point 0.8A COM port 0.3A HSPO point
	Inductive	80VA	12W/DC 24V7.2WHSPO point
	General	100W	0.9W/DC 24V
Response Time	ON	<10ms	<0.2ms (Pulse out put terminal：<5us)
	OFF

AC Power Supply

Item	LX3V(P)0806M/1208M/1212M/1412M	LX3V(P)1616M/2416M/3624M
Voltage	AC100~240V 50~60Hz
Power Outage Time	10ms
Rush Current	<15A 5ms/AC 100V; <30A 5ms/AC 200V
Power Fuse	250V 1A	250V 3.15A
Power Consumption	<35w	<60w
Power Output	DC 24V 850mA	DC 24V 700mA

DC Power Supply

Item	LX3V/LX3VP
Power Supply	DC 24V±10%
Power Outage Time	10ms
Power Fuse	250V 3.15A
Rush Current	<15A 1ms/DC 24V
Power Consumption	<30w
