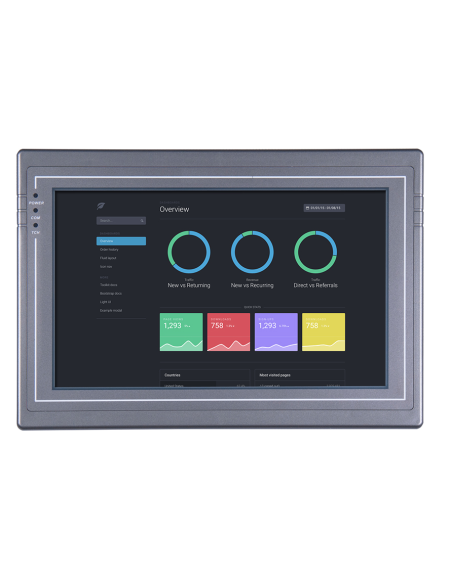

Wecon PI 10.2 inch HMI : PI8102-R

Danh mục sản phẩm

Wecon PI 10.2 inch HMI : PI8102-R

◇ Hardware: CPU 600MHz, 2GM FLASH, 128M DDII RAM ◇ Display size: 10.2 inch ◇ Resolution: 800×480 TFT LCD 260,000 colors ◇ Interface: RS232/RS485/RS422 (5 COM ports available) ◇ Storage: Support Date Storage, SD Card, U Disk ◇ Built-in remote access ◇ Programmed by PIStudio ◇ WINCE7.0 LINUX is optional

Giá:
Liên hệ
Lượt xem:
211

Thông tin sản phẩm
Bình luận

wecon hmi remote control.jpg

OS			WECON OS based on Linux QT
CPU			Cortex A8 600MHz
Touch Screen			High precision four-wire resistive
Display	Screen Size		7 Inch	10.2 Inch	10.4 Inch
	Resolution		800*480	800*480	800*600
	Brightness		250cd/m²	350cd/m²	250cd/m²
	Contrast Ratio		500:1
	Backlight Type		LED
	Backlight Life Time		50,000 hours
	Colors		16,000K Colors	260K Colors	16000K Colors
Storage	FLASH		2G EMMC
	RAM		DDRIII 512M
	SD Card		Compatible
I/O ports	USB Host		USB Host:USB2.0x1; USB Client:USB2.0x1
	Serial Port	COM1	RS232,RS422/RS485‍
		COM2	RS232,RS485
		COM3	RS485
	Ethernet		YES
	CAN		YES
Permanent Calendar			Built-in
Power	Power Supply		24V DC(12~28V DC)
	Power consumption		<10w< span="">
Dimension	Enclosure		ABS
	Dimension (mm)		201.0W146.6H36.5D	271.8W190.5H41.4D	298.0W223.0H53.5D
	Mounting Size (mm)		192.0W*138.0H	260.0W*179.0H	288.0W*212.0H
	Weight (KG)		0.6	1.2	1.9
Operation Environment	Protection		IP65(Front panel)
	Storage Environment		Storage : -30℃ ~ 70℃; Working : -10℃ ~ 60℃
	Working Environment		10~90% RH (Non-condensing)
	Seismic Resistance		10~25 Hz (X,Y,Z direction 2G/3D minutes)
CE Certification			CE marked
FCC Certification			FCC Class A
Software			PI Studio
Remote Control ‍			YES
