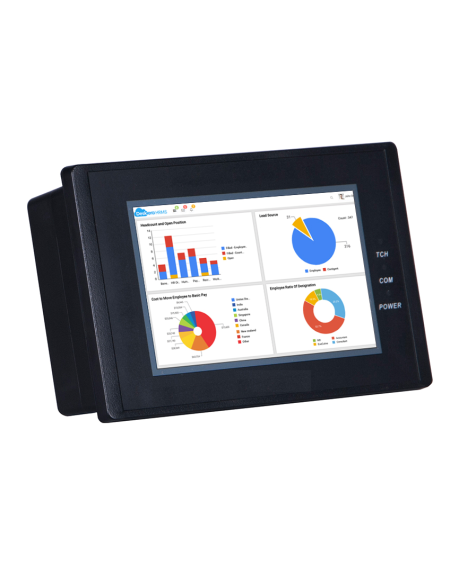

Wecon 4.3 inch HMI Standard:LEVI2043T

◇ Display size: 4.3 inch
◇ Resolution: 480×272 TFT LCD 65536 colors
◇ Interface: Support RS232/RS485/RS422
◇ Storage: Support Date Storage, U Disk

Model			LEVI2035T	LEVI2043T

General	Screen Size		3.‍‍5 Inch	4.3 Inch
	Resolution		320*240	480*272
	Colors		65536 colors
	Brightness		450cd/m²
	Backlight Type		LED
	Touch Screen		High procision four-wire resistive
	Backlight Life Time		50000 hours
	CPU		32-bits 300MHz RISC
	Storage		128M FLASH + 64M DDRAM
	RTC		256KB
	Printer Port		Serial port Printer
	USB Port		USB host + USB Client
	SD card		--
	COM	COM1	RS422/RS485	RS422/RS485
		COM2	RS232	RS232
		COM3	--	--
Power	Power		<5w	<5w
	Power Supply		DC 24V ( 12~28V DC )
	Allowed Power Fail		<5ms
	Insulation Resistance		>20MΩ 500V DC
	Withstand Voltage		500V AC < 1 minute
Dimension	Shell		ABS,Black
	Dimension (mm)		96.0W81.0H33.0D	141.4W85.4H38.9D
	Mounting size (mm)		91.0W*73.0H	131.0W*79.0H
	Net/Gross (KG)		0.14/0.26	0.23/0.39
Operate Environment	Temperature		Working Temperature : -10~60℃ ; Storage Temperature : -20~70℃
	Humidity		Working Humdity : 10~90% RH ; Storage Humidity : 10~90%RH
	Seismic Resistance		10~25 Hz ( X,Y,Z direction 2G/30 minutes)
	Cooling		Air cooling
Extension	Ethernet		--	--
	CAN		--	--
	TTS		--	--
	COM3		--	--
Protection			IP65 ( Front panel )
CE Certification			CE Certification: CE marked
FCC Certification			FCC Class A
