Wecon 4.3 inch UL Approved HMI:LEVI2043E-U

◇ The thickness: 30.3mm, it is 6.7mm thinner than the model LEVI2043T.
◇ Ports use 7P Terminals,which extremely save space.
◇ Hardware: 128M FLASH, 64DDII RAM
◇ Display size: 4.3 inch
◇ Resolution: 480×272 TFT LCD, 16000k colors
◇ Ethernet: Yes
◇ Certificated: cULus Listed

Giá:
Liên hệ
Lượt xem:
769

Thông tin sản phẩm
Bình luận

WECON launched new model HMI LEVI2043E-U which approved by UL Certification.

Other features:

* Support Customization.

* Support Most brands of PLCs and controlled.

* Wecon product line include: HMI,PLC,Industrial panel PC,IIoT solutions, VFD(inverter).

Welcome to contact us for more details:

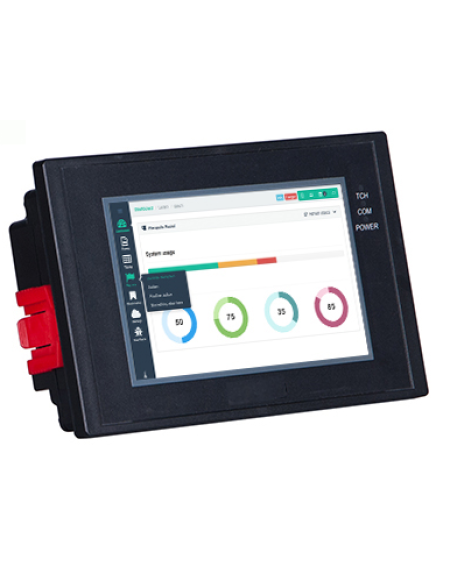

WECON 2043E-U.jpg

Model			LEVI2043E-U

General	Screen Size		4.3 Inch
	Resolution		480*272
	Colors		16,000k colors
	Brightness		400cd/m²
	Backlight Type		LED
	Touch Screen		High procision four-wire resistive
	Backlight Life Time		5,0000 hours
	CPU		32-bits 300MHz RISC
	Storage		128M FLASH
	USB Port		Micro USB
	SD card		N/A
	COM	COM1	RS422/RS485
		COM2	RS232
Power	Power		<5w
	Power Supply		DC 24V ( 12~28V DC )
	Allowed Power Fail		<5ms
	Insulation Resistance		>20MΩ 500V DC
	Withstand Voltage		500V AC < 1 minute
Dimension	Shell		ABS,Black
	Dimension (mm)		142.0W86.0H30.3D
	Mounting size (mm)		131.0W*78.0H
	Net/Gross (KG)		0.19/0.30
Operate Environment	Temperature		Working Temperature : -10~60℃ ; Storage Temperature : -20~70℃
	Humidity		10~85%RH(Non-condensing)
	Seismic Resistance		10~25 Hz ( X,Y,Z direction 2G/30 minutes)
	Cooling		Air cooling
Extension	Ethernet		YES
Protection			IP65 ( Front panel )
UL Certification			cULus Listed
FCC Certification			FCC Class A
