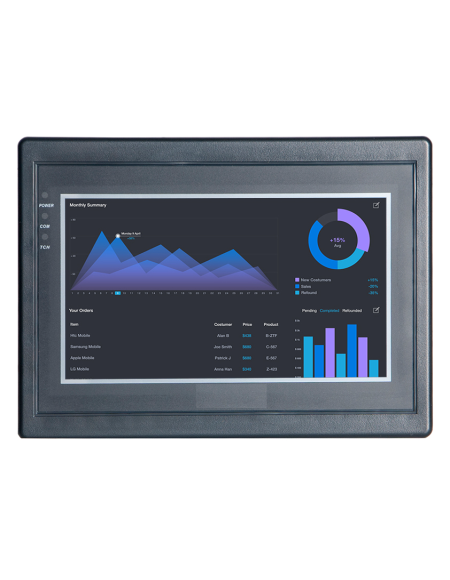

Wecon 7 inch Standard HMI: LEVI700ML

◇ Hardware: CPU 32-bits 300MHz RISC，128M FLASH， 64M DDRAM
◇ Display size: 7 inch
◇ Resolution: 800×480 TFT LCD, 65536 colors
◇ Interface: COM1:RS485/RS422 COM2:RS232
◇ Storage: Support Date Storage, U Disk

Giá:
Liên hệ
Lượt xem:
1035

Thông tin sản phẩm
Bình luận

Model			LEVI700ML

General	Screen Size		7 Inch
	Resolution		800*480
	Colors		65536 colors
	Brightness		250cd/m²
	Backlight Type		LED
	Touch Screen		High procision four-wire resistive
	Backlight Life Time		50000 hours
	CPU		32-bits 300MHz RISC
	Storage		128M FLASH + 64M DDRAM
	USB Port		USB host + USB Client
	COM	COM1	RS422/RS485
		COM2	RS232
Power	Power		<5w
	Power Supply		DC 24V ( 12~28V DC )
Dimension	Enclosure		PC+ABS, Cold Grey
	Dimension (mm)		201.0W146.0H36.0D
	Mounting size (mm)		192.0W*138.0H
	Net/Gross (KG)		0.56/0.80
Operate Environment	Temperature		Working Temperature : -10~60℃ ; Storage Temperature : -20~70℃
	Humidity		10-85%RH (Non-condensing)
	Seismic Resistance		10~25 Hz ( X,Y,Z direction 2G/30 minutes)
	Cooling		Air cooling
Protection			IP65 ( Front panel )
CE Certification			CE Certification: CE marked
FCC Certification			FCC Class A
