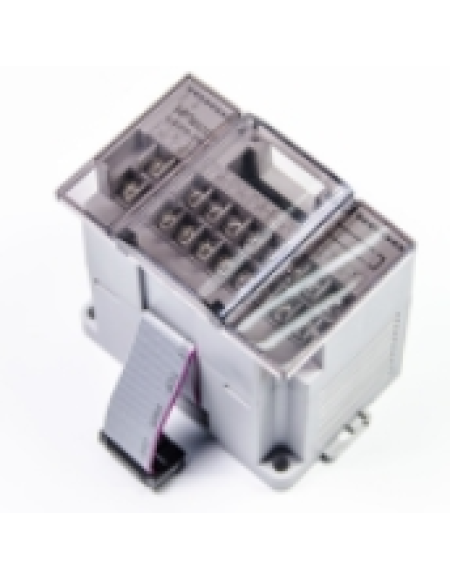

Wecon LX3V-1WT-L Weighing PLC Module

Danh mục sản phẩm

Wecon LX3V-1WT-L Weighing PLC Module

Wecon LX3V-1WT-L Weighing PLC Module

Wecon LX3V-1WT-L Weighing PLC Module

Giá:
Liên hệ
Lượt xem:
890

Thông tin sản phẩm
Bình luận

Item		Description
Channel		Signal channel
A/D converter		18bitΔˉ∑ A/D
Resolution		18bit (signed)
Speed		7.5/10/25/50/60/150/300Hz available
Polarity		Unipolar and bipolar
Non-linearity‍		≤0.01% full scale(25℃)


Zero drift		≤0.2μV/℃
Gain drift		≤10ppm/℃
Excitation current		5V,load impedance≥200Ω
Sensor sensitivity		1mV/V-15mV/V
Isolation‍		Transformer (power supply) and the optical coupler (signal)
Lamp		Power supply lamp, communication lamp
Power supply		24V±20% 2VA
Operating temperature		0~60℃
Storage temperature		-20~80℃
Dimension		90(L)x58(W)x80(H) mm
CE Certification		CE marked

LX3V Weighing PLC Module.jpg

PLC 模块尺寸图 .png
