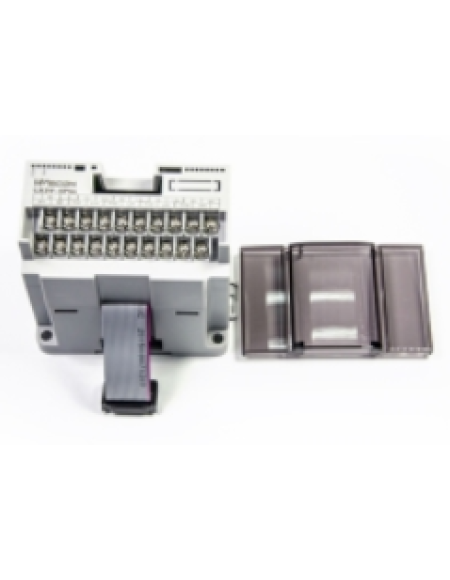

Wecon LX3V-4PGA PLC pulse generator (Advanced) unit

Wecon LX3V-4PGA PLC Module

Supports 4-channel high speed pulse outputs
Supports Home position return, JOG, interrupt position and two-speed pulse control
Supports S-type acceleration and deceleration
Maximum support for 200k pulse output
Interrupt signal, origin signal input

Product Description

Output Specification

Output circuit
Power supply	DC5V ~ 30V
Circuit insulation	Photo-coupling
LED	LED on when Photo-coupling is driven
Load Resistance	0.5A/ one point,0.8A/ two point
Load Inductance	12W/DC24V
Load Lamp	0.9W/DC24V
Leakage current	0.1mA/DC30V
Minimum load	—–
OFF->ON/ON->OFF	Less than 0.2ms
Output signal	NPN
CE Certification	CE marked
