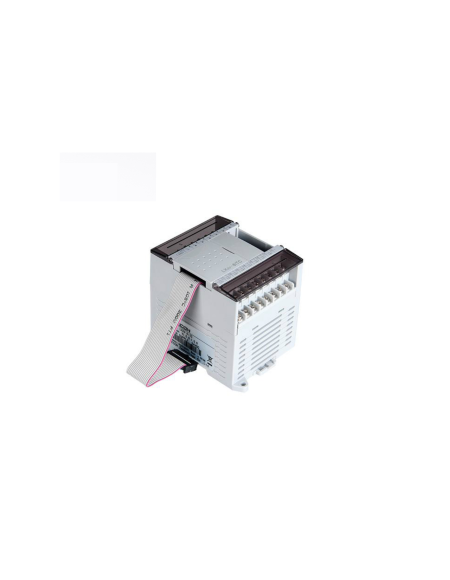

Wecon LX3V-8iTC Thermocouple Input PLC Module

8 channels for temperature acquiring; Multiple sensor types are supported; Supports thermocouple types like K, S, E, N, B, T, J and R.
All 8 channels are isolated from each other
Built-in cold junction compensation, external cold junction compensation, freezing cold junction compensation method.

Item	Specification
Dielectric withstand voltage	500V AC, 1min (between all terminals and ground)
Analog circuits	24V DC ± 10%, 55mA
Digital circuits	5V DC, 90mA (internal power supply from the main unit)
Centigrade (°C)/Fahrenheit (°F)	Both °C and °F are available by reading the appropriate buffer memory(BFM).
Input signal	Thermocouple: Type K or J (either can be used for each channel), 4 channels
Rated temperature range(°C)	Type K:-100℃ to +1200℃ Type J:-100℃ to +600℃
Rated temperature range(°F)	Type K:-148℉to +2192℉ Type J:-148℉ to +1112℉
Digital output(°C)	Type K：-1000 to 12000 Type J:-1000 to 6000
Digital output(°F)	Type K：-1480 to 21920 Type J:-1480 to 11120
Digital output	12-bit conversion ,save as complement of 2 in 16 bits
Overall accuracy	± (0.5% full scale +1°C) Freezing point of pure water 0°C / 32°F
Conversion speed‍	(240ms ± 2%) × 4 channels (unused channels are not converted)
CE Certification	CE marked
