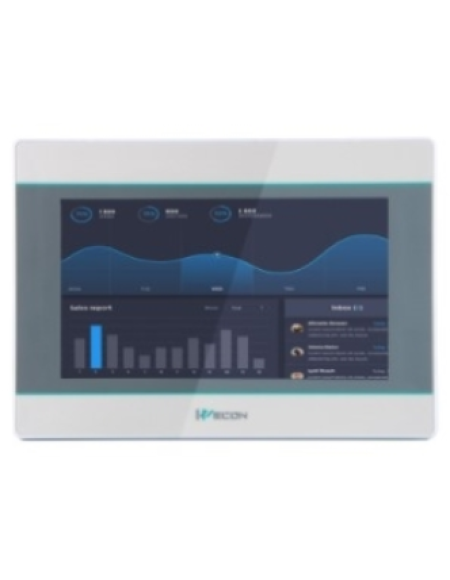

Wecon New Style 7 inch Ethernet HMI PI3070i-N

Danh mục sản phẩm

Wecon New Style 7 inch Ethernet HMI PI3070i-N

WECON 7 inch high performance HMI :

Faster screen update, Faster screen switch, Better communication stability.

◇Hardware: CPU Cortex A7 528MHz,128M FLASH, 128M DRM
◇Display size: 7 inch
◇Resolution: 800×480 TFT LCD, 16000k colors
◇Interface: COM1:RS485/RS422; COM2:RS232
◇Storage: Support Data Storage, U Disk

Giá:
Liên hệ
Lượt xem:
956

Thông tin sản phẩm
Bình luận

Model			PI3070i-N

General	Screen Size		7 Inch
	Resolution		800*480
	Colors		16,000K colors
	Brightness		250cd/m²
	Backlight Type		LED
	Touch Screen		High procision four-wire resistive
	Backlight Life Time		50,000 hours
	CPU		Cortex A7 528MHz
	Storage		128M FLASH + 128M DDRAM
	USB Port		USB host + USB Client
	Ethernet		YES
	COM	COM1	RS422/RS485
		COM2	RS232
Power	Power		<8w
	Power Supply		DC 24V ( 12~28V DC )
Dimension	Shell		PC+ABS
	Dimension (mm)		201.2W147.2H39.0D
	Mounting size (mm)		192.0W*138.0H
	Net/Gross (KG)		0.51/0.74
Operate Environment	Temperature		Working Temperature : -10~60℃ ; Storage Temperature : -20~70℃
	Humidity		10-85%RH (Non-condensing)
	Seismic Resistance		IEC61131-2 standard Continuous vibration occasion: 10Hz~57Hz 0.075mm, 57Hz~150Hz 9.8m/s2 Discontinuous vibration: 10Hz~57Hz 0.035mm, 57Hz~150Hz 4.9m/s2 X, Y, Z in 10 directions each (80 minutes)
	Cooling		Air cooling
Protection			IP65 ( Front panel )
CE			CE Marked
FCC			FCC Class A
