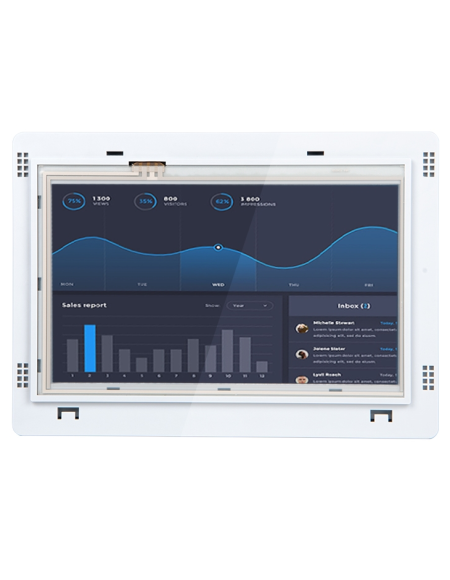

Wecon Open Frame 7 inch Ethernet HMI PI3070i-N-SL

Wecon Open Frame 7 inch Ethernet HMI PI3070i-N-SL

◇Hardware: CPU Cortex A7 528MHz,128M FLASH, 128M DDRAM
◇Display size: 7 inch touch screen
◇Resolution: 800×480 TFT LCD, 16000k colors
◇Interface: COM1:RS485/RS422; COM2:RS232
◇Open frame with rear mounted, show your machine in the united appearance, easy and low cost for structure design.

Giá:
Liên hệ
Lượt xem:
1084

Thông tin sản phẩm
Bình luận

Model			PI3070i-SL-N

General	Screen Size		7 Inch
	Resolution		800*480
	Colors		16,000K colors
	Brightness		250cd/m²
	Backlight Type		LED
	Touch Screen		High procision four-wire resistive
	Backlight Life Time		50,000 hours
	CPU		Cortex A7 528MHz
	Storage		128M FLASH + 128M DDRAM
	USB Port		USB host + USB Client
	Ethernet		YES
	COM	COM1	RS422/RS485
		COM2	RS232
Power	Power		<8w
	Power Supply		DC 24V ( 12~28V DC )
Dimension	Shell		PC+ABS
	Dimension (mm)		191.2W137.2H41.0D
	Mounting size (mm)		172.0W*110.0H
	Net/Gross (KG)		0.52/0.74
Operate Environment	Temperature		Working Temperature : -10~60℃ ; Storage Temperature : -20~70℃
	Humidity		10-85%RH (Non-condensing)
	Seismic Resistance		IEC61131-2 standard Continuous vibration occasion: 10Hz~57Hz 0.075mm, 57Hz~150Hz 9.8m/s2 Discontinuous vibration: 10Hz~57Hz 0.035mm, 57Hz~150Hz 4.9m/s2 X, Y, Z in 10 directions each (80 minutes)
	Cooling		Air cooling
